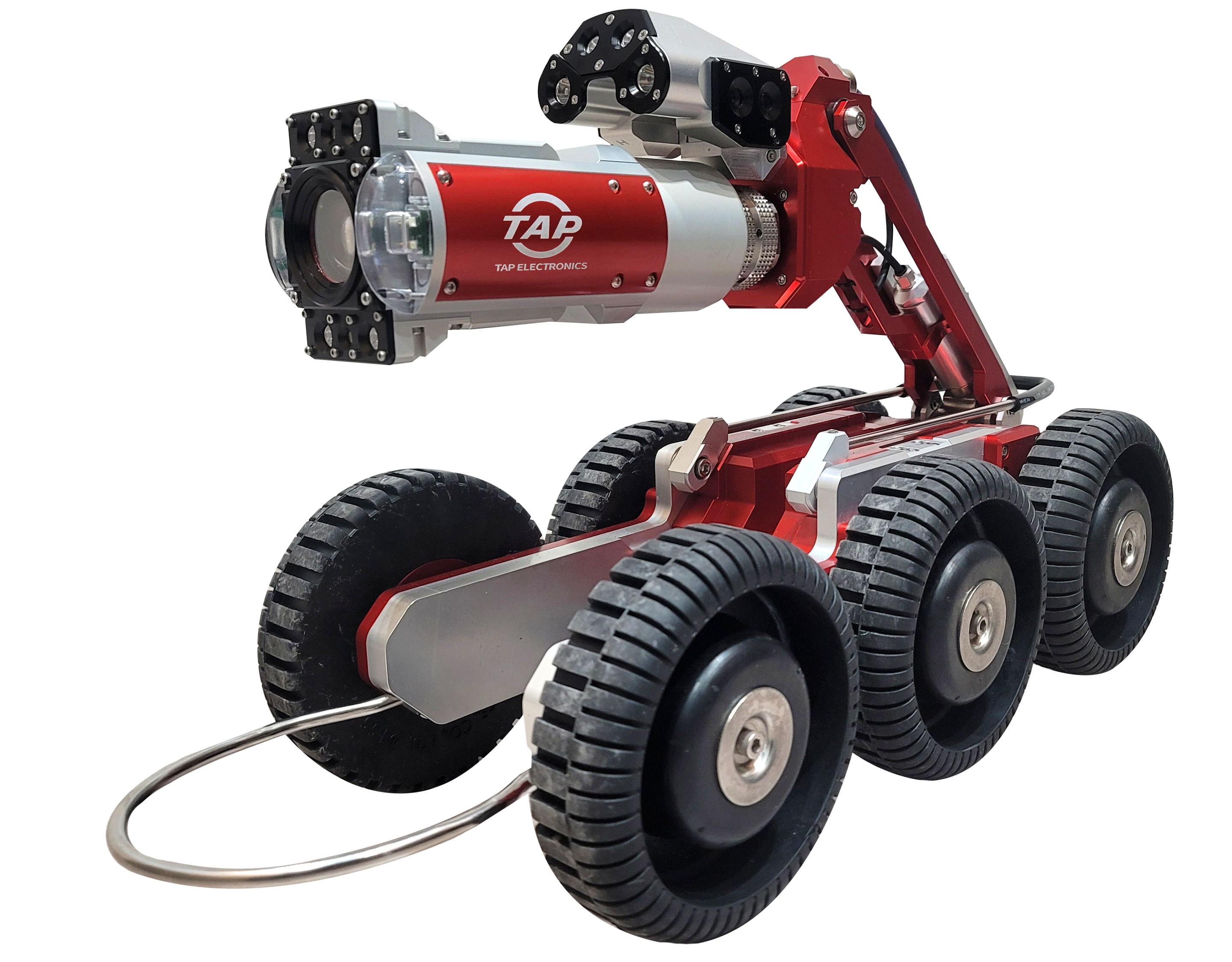

ROBOCAM AMERICA Inc. presents a whole new
design of ROBOCAM S, which makes it clearly distinguishable
from other sewer inspection camera crawlers in the industry. This specific design
has been systematically developed by professionals with numerous awards,
who drew inspiration from combat aircraft, submarines, and luxury sports cars.
ROBOCAM AMERICA Inc. presents a whole new design of ROBOCAM S,
which makes it clearly distinguishable from other sewer inspection camera crawlers in the industry.
This specific design has been systematically developed by professionals with numerous awards, who drew inspiration from combat aircraft, submarines, and luxury sports cars.

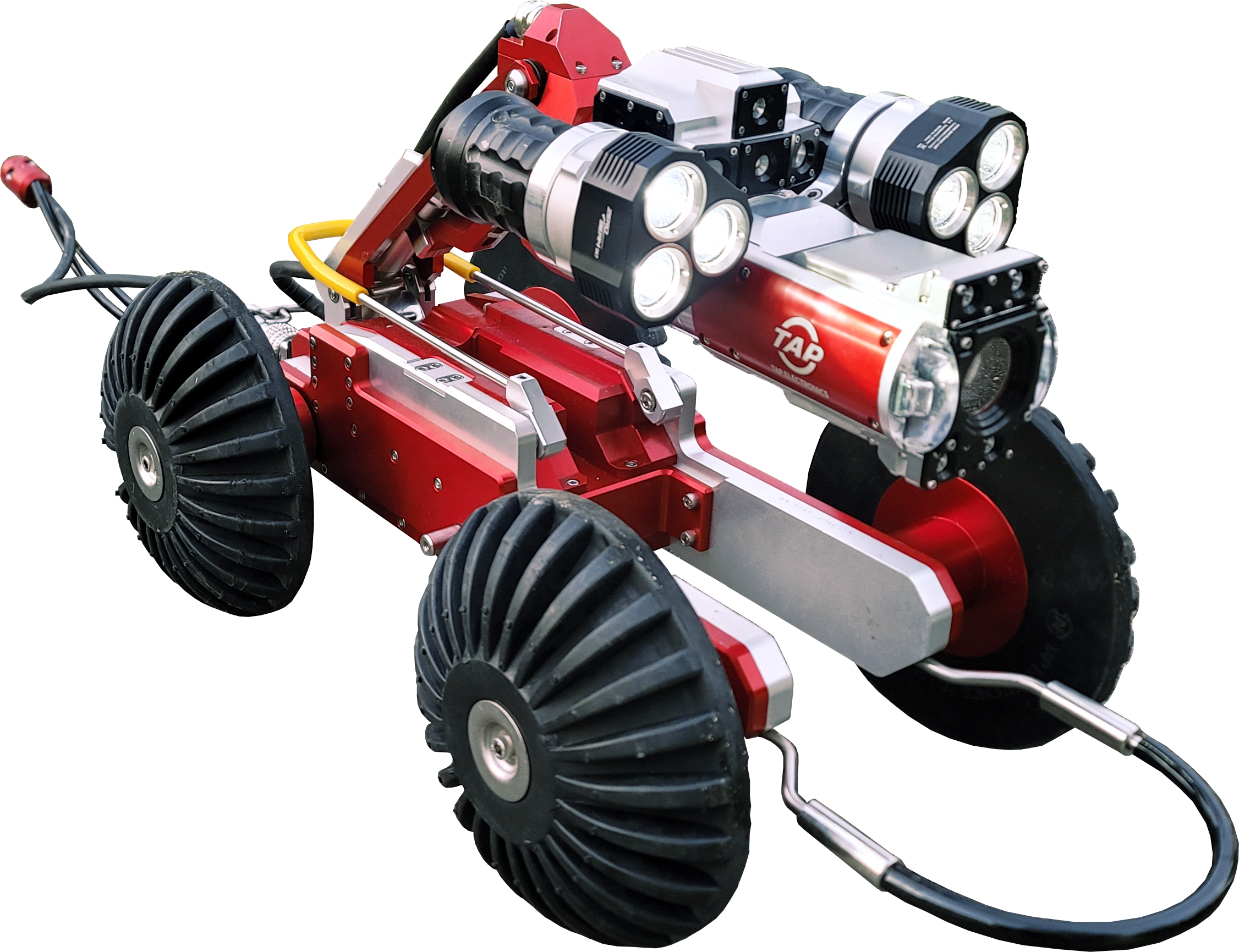

ROBOCAM S skeleton framework is inherited from
TAP electronics ‘family-look’ design.
Especially, the wheel frame that’s attached on both
sides of the body, with an individual motor loaded on each side.
Even though they are separated from the body,
as long as the cable is connected, then this unique structure enables
the wheels on both sides to function independently.
ROBOCAM S skeleton framework is inherited from
TAP electronics ‘family-look’ design.
Especially, the wheel frame that’s attached on both
sides of the body, with an individual motor loaded on each side.
Even though they are separated from the body,
as long as the cable is connected, then this unique structure enables
the wheels on both sides to function independently.

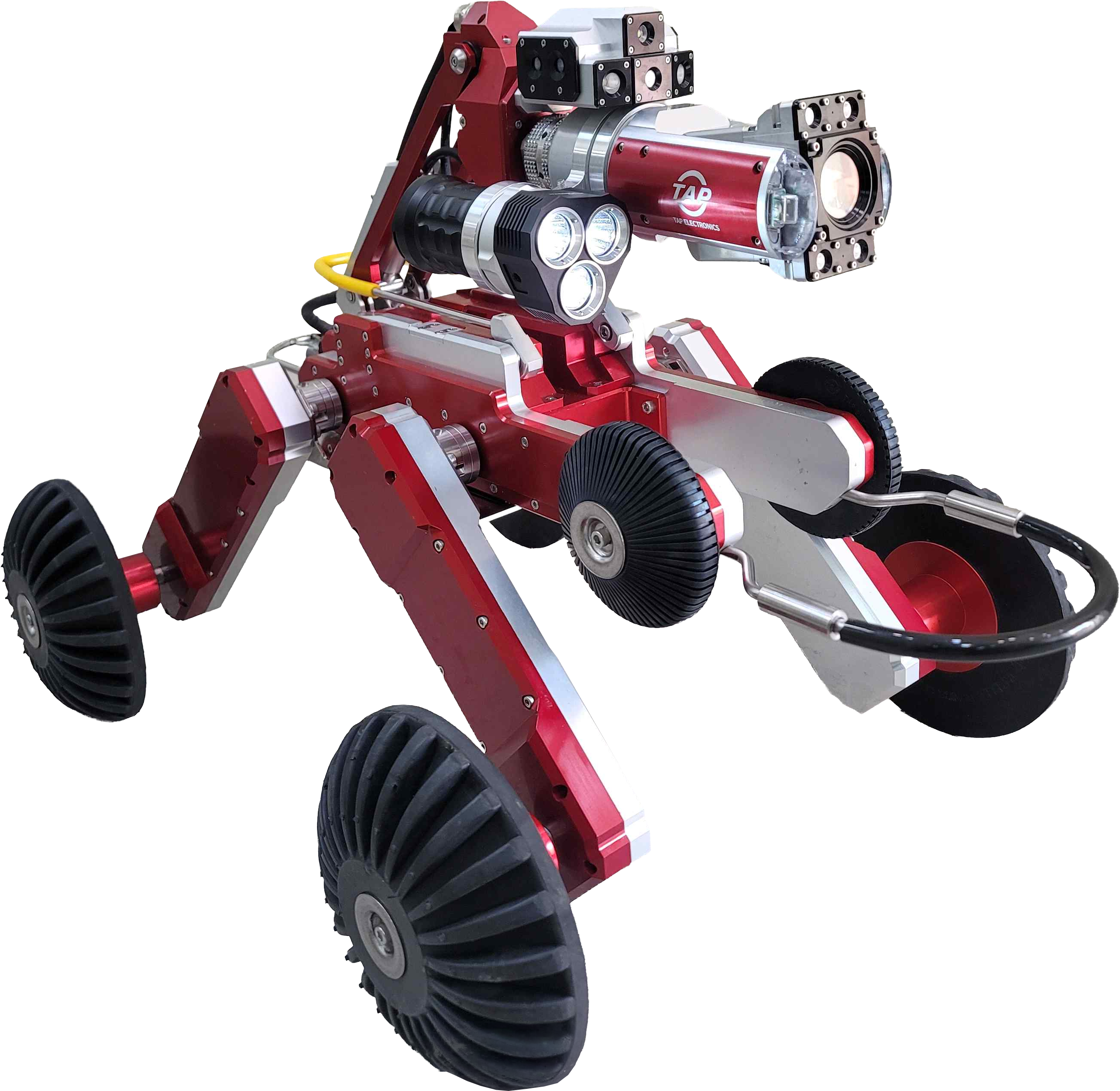

The independent wheel frame is essential for the extension of the robot by using the Spherical-Cell Extension Kit.
This Kit is an innovative robot-transforming platform, on which the users can transform and infinitely expand ROBOCAM S to their taste, similar to building with LEGO blocks.
The independent wheel frame is essential for the extension of the robot by using the Spherical-Cell Extension Kit.
This Kit is an innovative robot-transforming platform, on which the users can transform and infinitely expand ROBOCAM S to their taste, similar to building with LEGO blocks.
Core Value 02
Leading Sensor-Based Technology
01 Inclination Sensor Function
01
Inclination Sensor functions
One of the representative sensor-based functions of ROBOCAM S originates from the gyro sensor technique, measuring the inclination of the pipe andcrawler posture.
The inclination sensor function senses the inclination of the pipe while the crawler is inside and displays the collected data on a graph.
This function prevents the crawler from being overturned while driving inside the pipe by displaying the crawler’s posture in 3D pitch and roll status in real-time.
If the crawler is tilted above the predetermined angle, and at risk of flipping over, then the system signals the users visually and aurally in real-time.
02 Camera Lift – Center Positioning IR Sensor Technology
02
Camera Lift – Center Positioning IR Sensor Technology
ROBOCAM S has a special function that allows the pipe inspectioncrawler to automatically adjust the height of the camera to the center of the pipeline when it enters the pipeline with an Infrared Ray sensor (Patent Pending).
This amazing technology allows the camera to automatically position itself to the origin by a one-touch operation, and measure the actual size of a pipeline regardless of sludge and other obstacles. The pipeline inspection manuals for every country require that the height of the camera must be positioned in the center of the pipeline.
In the past, users had to manually fix the height of the camera based on their intuition. But with ROBOCAM S, it is now possible to automatically set the camera position to the center and provide accurate sensor-based pipe diameter on the inspection report for the users.
In addition, according to the height control of the camera, the shape is depicted in real-time in 3D on the status dashboard, so the users can operate as if they are the actual crawling inside the pipe.
ROBOCAM S has a special function that allows the pipe inspection crawler to automatically adjust the height of the camera to the center of the pipeline when it enters the pipeline with an Infrared Ray sensor (Patent Pending).
This amazing technology allows the camera to automatically position itself to the origin by a one-touch operation, and measure the actual size of a pipeline regardless of sludge and other obstacles. The pipeline inspection manuals for every country require that the height of the camera must be positioned in the center of the pipeline.
In the past, users had to manually fix the height of the camera based on their intuition. But with ROBOCAM S, it is now possible to automatically set the camera position to the center and provide accurate sensor-based pipe diameter on the sewer inspection report for the users.
In addition, according to the height control of the camera, the shape is depicted in real-time in 3D on the status dashboard, so the users can operate as if they are the actual crawling inside the pipe.
03 Camera Pan/Tilt Direction Sensor
03
Camera Pan/Tilt Direction Sensor
ROBOCAM S is designed to sense the direction of the camera when it is panning or tilting.
And it displays the direction and the inclination with numbers and shapes on the STATUS bar.
Also, it restores the camera position to the center of the pipeline, simply with a single touch to the joystick.
04 Crawler’s Pressure, Humidity and Temperature Sensor
04
Crawler’s Pressure, Humidity and Temperature Sensor
ROBOCAM S is equipped with sensors for inner pressure, humidity, and temperature. This enabling the users to monitor the internal state of the sewer inspection crawler system at all times.
These sensors not only help the users to detect any leaks caused by external impact, but also prevents any severe damage to the internal electrical components. Due to abnormally high or low temperature, thereby preventing total system failure.
04 Crawler’s Pressure, Humidity and Temperature Sensor
ROBOCAM S is equipped with sensors for inner pressure, humidity, and temperature. This enables the user to monitor the internal state of the sewer inspection camera system at all times.
These sensors not only help the user to detect any leaks caused by the external impact but also prevents any severe damage to the internal electrical components. Due to abnormally high or low temperature, thereby preventing total system failure.
Core Value 03
CONVENIENT User-Oriented System
ROBOCAM S is specially designed to maximize the users’ convenience.
Robocam America Inc. has reviewed the data of the sewer pipe inspection crawlers used for decades and concluded that top-class sewer crawler cameras are the products that do not easily get damaged; even in hazardous environments. However, we are well aware that there are inevitable cases, however, and it is impossible to completely avoid any damage to the crawler.
The key point of our research was based on how quickly the users can repair the damaged machine and get back to work.
ROBOCAM S is specifically designed to prevent water from penetrating the motor room or PCBs even under extremely rough and poor sewage conditions.
The wheel-based skid system has nine gears linked to each side, providing the power to rotate three wheels at a time. The rotation shafts of each wheel have dual waterproof walls with a Q-Ring and a Teflon seal.
In rare cases, when there is a leak, water will not usually enter from the outside, because of the internal part of the skid is filled with oil for waterproofing.
The PCB boards that are responsible for the control and voltage power of the robot body, are isolated inside the waterproof sealed chamber.
This chamber has a waterproof rating of 100m by using vacuum decompression and gasket technology used in automobile engines.
What if it still malfunctions?
Users can directly purchase each component at a reasonable price through Robocam Global online shop,
which allows them to easily replace and repair the system with simple household tools.
Any corresponding parts ordered by users will be delivered within seven business days.
Also, if the users decide to return the defective parts to the head office, then they may be compensated as well.

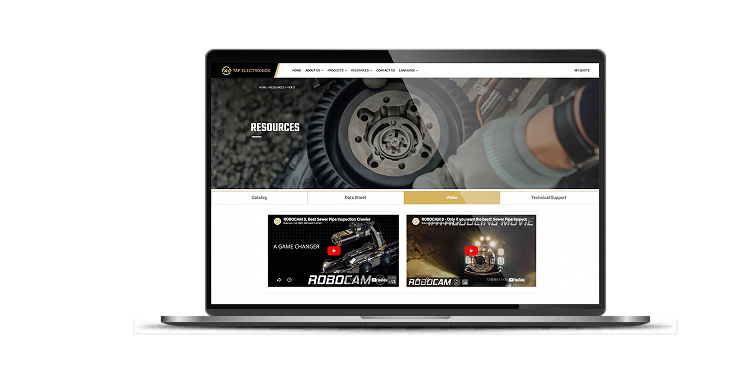

Users can download the manuals from the Robocam Global website and learn through
online platforms like YouTube to save time and money as they do not have to deal
with repair center through this DIY option.
Users can download the manuals from the Robocam Global website and learn through online platforms like YouTube to save time and money as they do not have to deal with repair center through this DIY option.
Let’s learn about this simple, customer-led and economical
DIY A/S program.
AT A GLANCE
The Highest level of video quality
Two Swiss Maxon motors
Fully waterproof system
Low maintenance
The Leading Sensor-Based Technology
Easy replacement of key components
Elegant Design
One-Touch Wheel Replacement Process
RoboCrawler S
Applicable Pipe range(with ⌀86mm wheels): From ⌀200mm
Easy and Intuitive Transformation
(One-Touch Wheel Replacement Process)
Completely Submersible
Twin Motors
Unbreakable Lift
RoboEye S
Zoom Camera with Laser Measurement
Removable Camera Unit
(Compatible with Robocam Jr. Crawler)
Various Lamp Kits
(Crown Lamp Kit, Tractor Bumper Kit)
IR Sensor
RoboController S
Sensor-Based Advanced Controller
Full HD Digital Recording Device
Quadrillingual Caption Program
RoboReel S
Synchronized Function
Easy to Replace Cables on Site
Thinner, But Stronger Cable
Robocam S Spec Highlights
General Specs
Camera and Lights
Weight
Body Material
Applicable Pipe Range
Pressure rating
183mm(W)*615mm(L)*133mm(H)
Maximum Lift Height :
183mm(W)*615mm(L)*336mm(H)
13.5kg (camera included)
Brass&Aluminum&SUS
200mm Dia ~ 2000mm Dia
1bar
Module
Imager
Lens
P/T
Min. Illumination
5 LED Light Intensity Level
Camera Head PAN Lamp
Camera Head Tilting Lamp
Additional Crown Lamp kit
Additional Body Forward Lamp
2M IP Camera (2MP Pixel)
Sony 1/2.8 “ CMOS 2MPSensor
2.8mm, Angle of view – 120 degrees
240 degree tilt, infinite pan
Color – 0.5 Lux, BW(IR ON) – 0 Lux
4ea
4ea
CREE *4ea
6ea on each SKID
General Specs
Weight
Body Material
Applicable Pipe Range
Pressure rating
183mm(W)*615mm(L)*133mm(H)
Maximum Lift Height :
183mm(W)*615mm(L)*336mm(H)
13.5kg (camera included)
Brass&Aluminum&SUS
200mm Dia ~ 2000mm Dia
1bar
Camera and Lights
Module
Imager
Lens
P/T
Min. Illumination
5 LED Light Intensity Level
Camera Head PAN Lamp
Camera Head Tilting Lamp
Additional Crown Lamp kit
Additional Body Forward Lamp
2M IP Camera (2MP Pixel)
Sony 1/2.8 “ CMOS 2MPSensor
2.8mm, Angle of view – 120 degrees
240 degree tilt, infinite pan
Color – 0.5 Lux, BW(IR ON) – 0 Lux
4ea
4ea
CREE *4ea
6ea on each SKID
General Specs
Minimum Lift Height :
183mm(W)*615mm(L)*133mm(H)
Maximum Lift Height :
183mm(W)*615mm(L)*336mm(H)
Weight
13.5kg (camera included)
Body Material
Brass&Aluminum&SUS
Applicable Pipe Range
200mm Dia ~ 2000mm Dia
Pressure rating
1bar
Camera and Lights
1920×1080 pixels (Full HD)
Module
2M IP Camera (2MP Pixel)
Imager
Sony 1/2.8 “ CMOS 2MPSensor
Lens
2.8mm, Angle of view – 120 degrees
P/T
240 degree tilt, infinite pan
Min. Illumination
Color – 0.5 Lux, BW(IR ON) – 0 Lux
5 LED Light Intensity Level
Camera Head PAN Lamp
4ea
Camera Head Tilting Lamp
4ea
Additional Crown Lamp kit
CREE *4ea
Additional Body Forward Lamp
6ea on each SKID
