ROBOCUT – S
Sewer Cutting & Milling Robot System
Overwhelming Technology: The New Standard in Pipeline Repair
|
01Equipped with FHD Tilt Camera
(Up/Down) |
05Removal of tree roots, mortar,
and protruding pipes inside pipelines |
|
02Compatible with Pneumatic
Breaker Head |
06Air & Water Jet Camera Wiping & Cleaning Function
|
|
03High-Speed Motor: 11,000 RPM
(Compatible with Electric/Pneumatic Grinders) |
07Lateral connection opening (reinstatement) for Trenchless Rehabilitation
|
|
04Appliable Pipe Diameter: 300–600mm
Max Range: 120m |
08Versatile Bit Compatibility: Spherical, Disc, Mushroom, and Piercing Pin Types
|
Product Feature · Robocut-S
01.
Electric/Pneumatic
Compatible System
Uninterrupted Flexibility in Any Field : Electric/Pneumatic
Compatibility System
- • Incorporates an electric and pneumatic compatibility system
- • Selects optimized power according to the working environment
- • Enables the removal of obstructions and the repair of sewer pipes through powerful cutting capabilities.
Obstacle Removal Tool: Compatibility & Performance
| Category | 1st | 2nd | 3rd | Avg. |
|---|---|---|---|---|
| Pneumatic → Electric | 1m 01s | 1m 06s | 1m 05s | 1m 03s |
| Electric → Pneumatic | 1m 13s | 1m 24s | 1m 12s | 1m 16s |
Electric Cutter and Pneumatic
02.

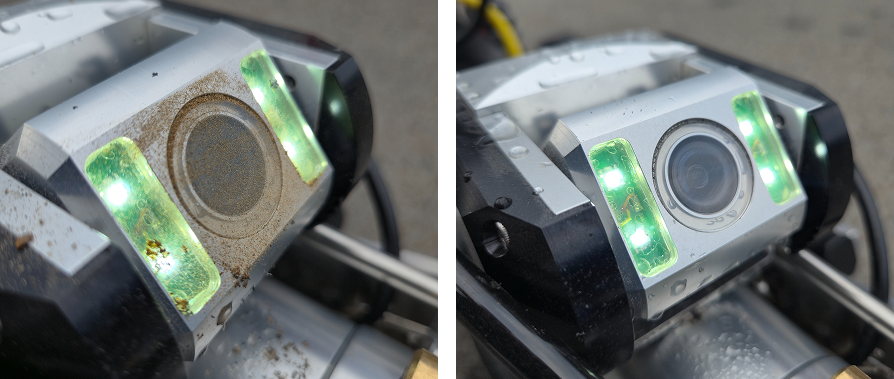

Equipped with a remote camera lens
cleaning function

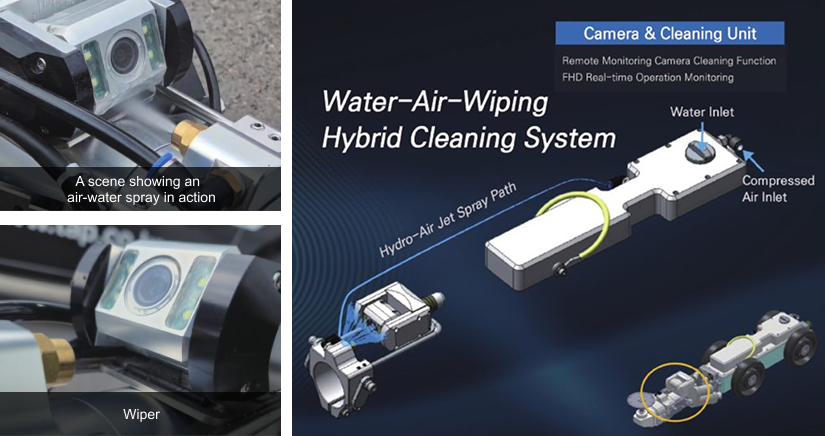

Cleans the camera lens by spraying air and water simultaneously
- • Can remove all foreign matter from the lens
- • Equipped with a wiper function to keep the lens area consistently clean
03.
Compatible with

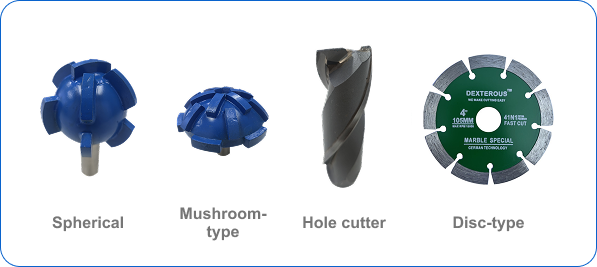

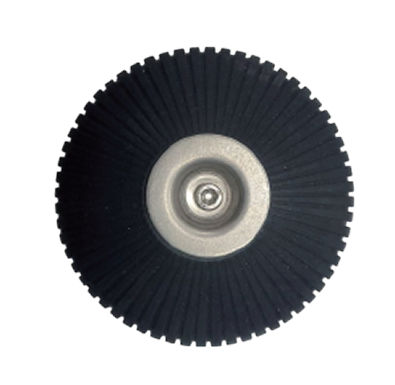

various cutting bits
In-house Manufacturing and Sales of Cutting Bits

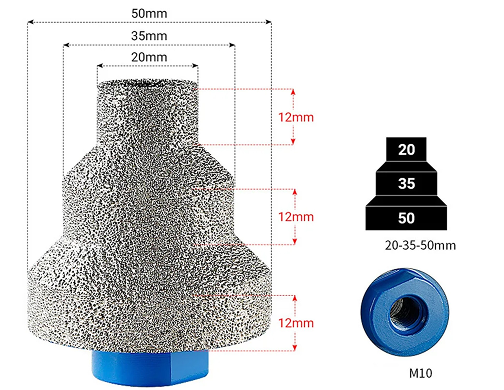

Diamond Vacuum Brazed Step Hole Saw

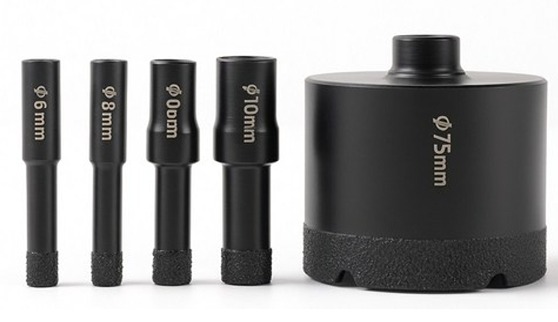

Diamond Vacuum Brazed Core Drill Bit
Robocut-S

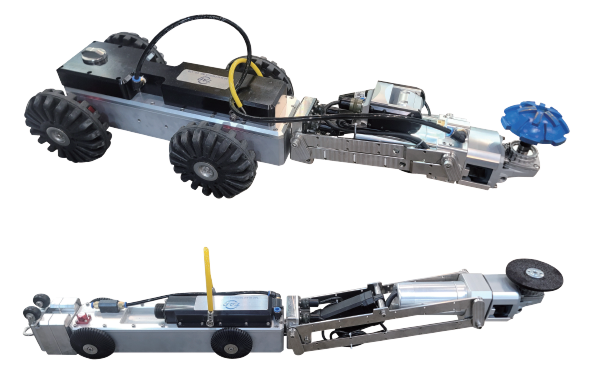

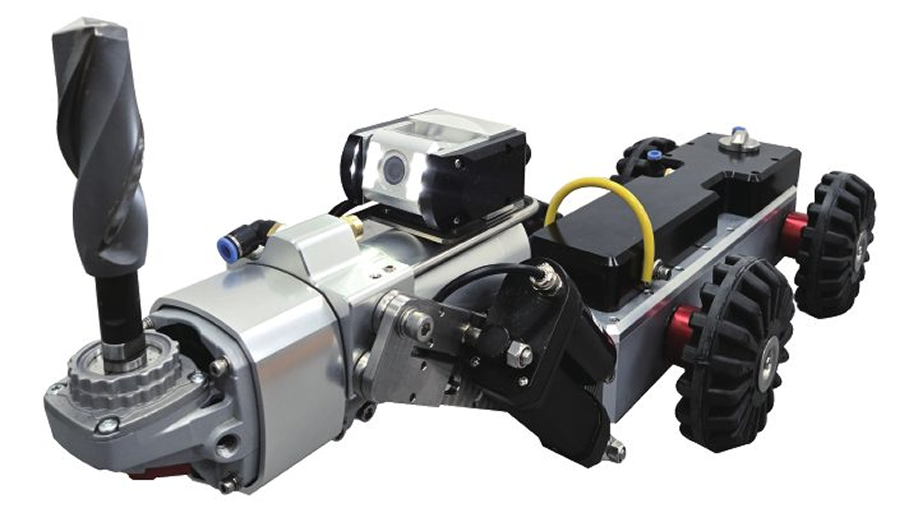

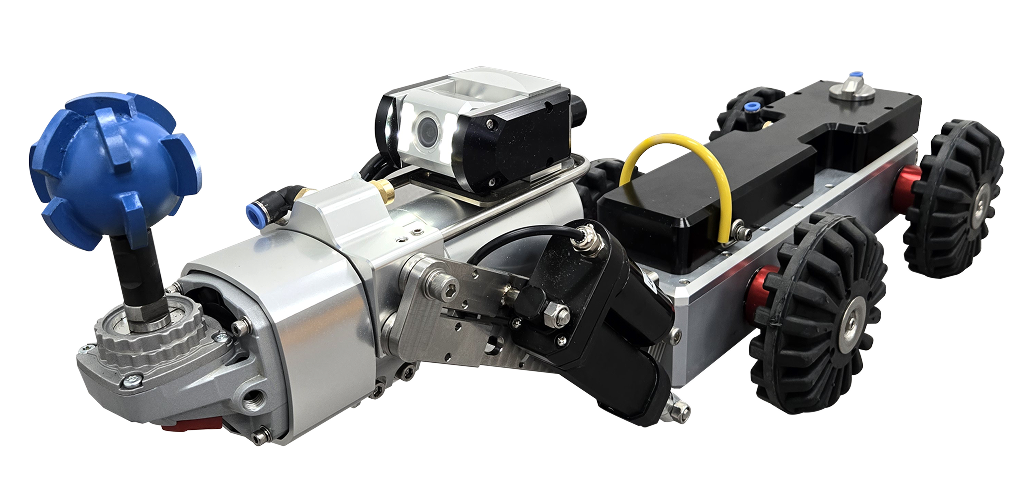

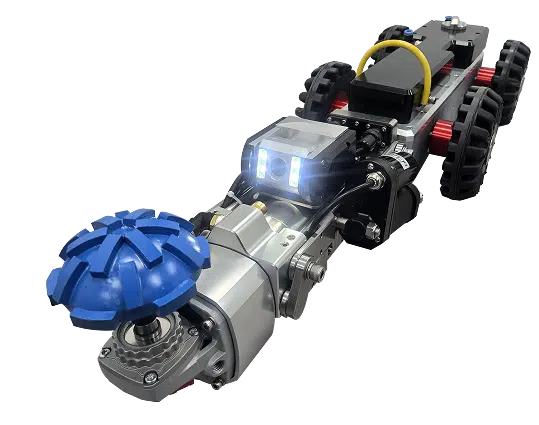

Basic Robot System
Total Components
08
Basic Robo

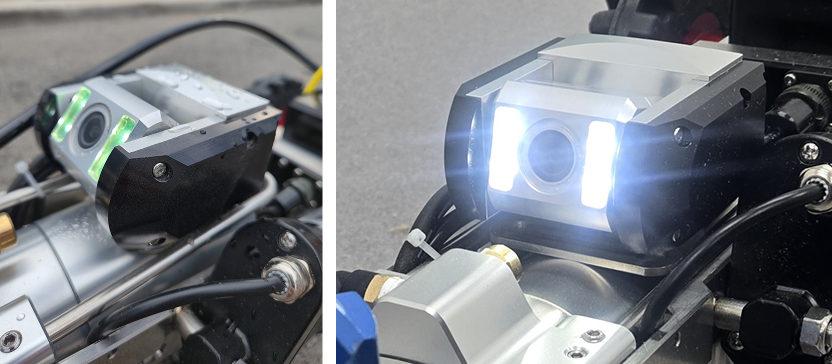

01. Tilt Camera Head
- – Remote-controlled motorized vertical tilt adjustment (±120°)
- – Integrated White LED lighting (4 x 3W [685 Lumens])
- – Utilizes German-made (Faulhaber/Maxon) pan-tilt motors
02. Lens Cleaning
- – If there is foreign matter on the camera lens,
clean it first with air water - –In the second step, use the wiper to maintain
a clean camera lens

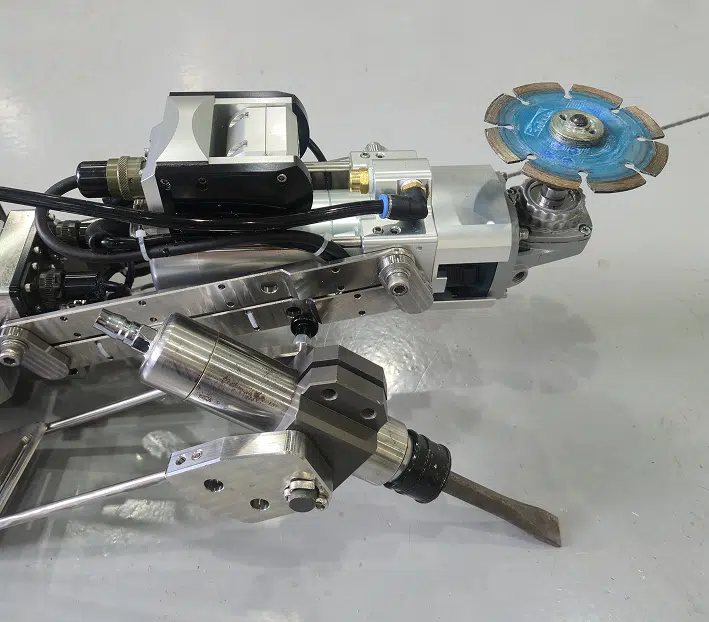

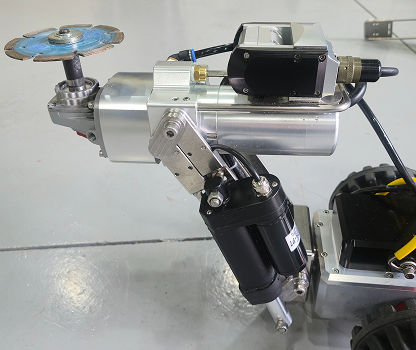

03.Grinder Lift (Electric/Pneumatic, Modular Exchange Type)
- –Fan Rotation Range : 350-degree / Features
German-made motors (Faulhaber/Maxon) –
Rotational brake-lock function - – Electric Grinder (Features a Bosch electric motor
head / 220 VAC / 60 Hz / Maximum Rotation Speed:
11,000 rpm / Grinding spindle thread: M10 –

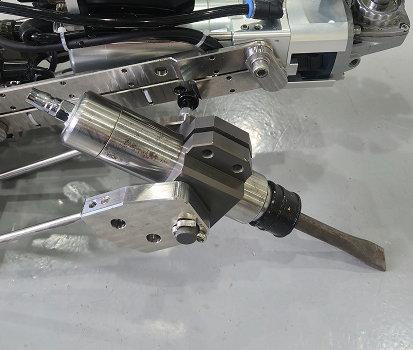

Pneumatic Air Hammer (Straight-type configuration /
Impact rate: 4,800 blows/min at 90 psi) - –Vertical Lift: Adjustable up to 200 mm
(Electric cylinder type)
04. Crawler
- –Motor: German-made (Faulhaber) motor (Rotational Speed: 6,700 RPM / Torque: 10 Nm) – Speed: Adjustable 0–100% (Max. travel speed: 30 m/min) At Rated Voltage (48V): 5,800 RPM / At Overvoltage (64V): 8,000 RPM – Input Power: DC 65V
- – Driving direction: Forward/Reverse
- –Travel Distance: Up to 150m
- –Dimensions: W140 x L950 x H150 mm (excluding wheels)

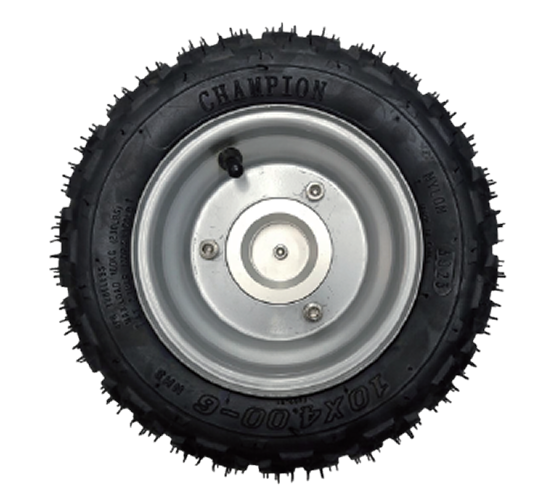

05. Wheel Options for Various Pipe Diameters
- –Compatible with various pipe diameters through two standard wheel options and two extension wheel options
- –Wheel sizes corresponding to specific pipe diameters:
Wheel 200D: Pipe Dia. 250–300 mm
Wheel 280D: Pipe Dia. 400–600 mm

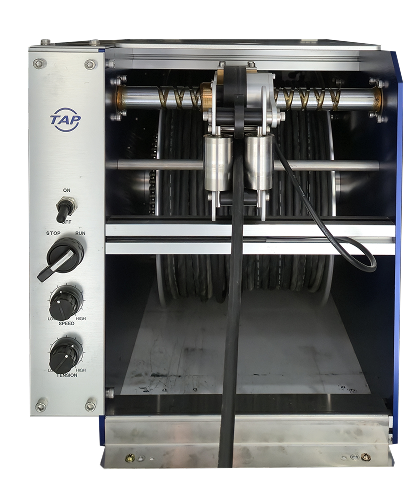

06. Cables and Motorized Cable Reels
- –Standard 150-meter cable
- –Cable Diameter: Ø8.5mm (Thin and lightweight cable boasting excellent tensile strength (Kevlar-reinforced)
- –Aluminum shielding structure for electromagnetic interference (EMI) protection
- –Integrated high-tensile steel wire core to prevent breakage (Kevlar structure)
- –Motorized cable retraction function
- –Synchronized winding function during reverse operation
- –Equipped with an encoder sensor for travel distance measurement
- –Automatic cable alignment function during retraction
- –User-friendly, multi-stage cable locking mechanism
- –Adjustable cable winding speed and tension
- –Equipped with wheels and a multi-stage telescopic handle for enhanced portability
- –Designed with a detachable cable structure allowing user cable replacement
- –Dimensions: W484 × D557 × H406 mm – Weight: 19.4 kg

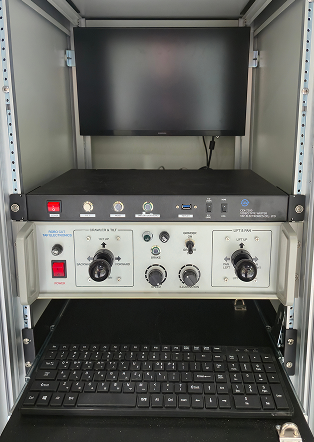

07. ROBOCUT S Dedicated Controller (Includes Subtitler and Recording Device)
- –Monitor + Subtitle Generator + Recording Device
- –19-inch LED Monitor
- –Functions for system power supply, crawler drive control, camera pan/tilt operation, lighting brightness adjustment, and lift height control
- –Keyboard for subtitle generation
- –Switchable display modes: Integrated control interface (featuring embedded video feed) and full-screen video view
- –Real-time subtitle insertion into the live inspection feed (displaying essential data such as date, time, distance meter, manhole section markers, pipe material, pipe diameter, drainage method, and live pipe status)
- –On-screen insertion of detailed information regarding anomalies detected during inspection (based on the classification criteria for various anomalies outlined in the Ministry of Environment’s *Sewage Pipe Inspection Manual*)
- –Additional custom subtitles (featuring built-in subtitle editing and saving functions)
- –On-screen insertion of project overview and start-of-work details (replaces traditional whiteboard recording with digital methods)
- –Built-in digital recording software (MP4 format; supports Record, Pause, Stop, Load, Fast Forward, Rewind, and Playback modes)
- –Data storage via external USB hard drive or memory stick -Dimensions: W450 × D550 × H140 mm
- –Weight: 16.6 kg
08.Small size Robot syetem (Model Robocut S Jr.)
- –Applicable Pipe Diameter: 150 – 250 mm – Dimensions: W85 x L1000 x H106
- –Weight: 30 kg
- –Motor: German-made (Faulhaber / Maxon) motor adopted – Pneumatic / Electric compatible
- –Monitoring camera not included
