Sewer crawler camera controller - RoboContorller S

RoboController S

RoboController S with an intuitive design. It consists of a Full HD recorder and a multi-language sub-title generator. It can be written in four different languages – English, Korean, Japanese, and Chinese. While doing your job inspecting the sewer, our RoboController S will help you understand the exact location by displaying the data on the monitor.

SENSOR-BASED ADVANCED CONTROLLER

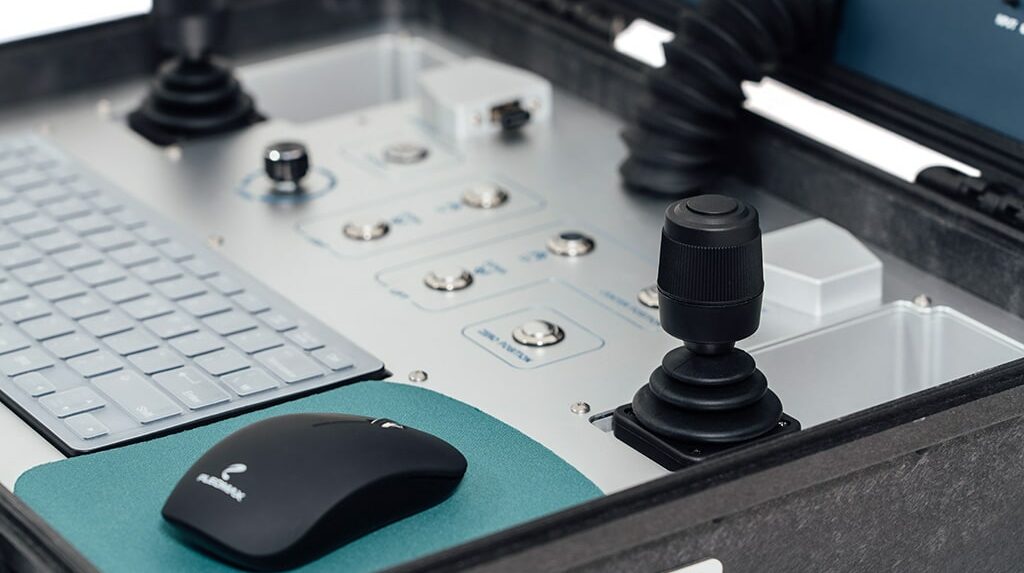

This advanced sewer crawler camera controller comes with two joysticks: one is designed to perform the Pan & Tilt control of the camera head as well as the focus and zoom functions, while the other controls the left-right movement and forward-backward drive as well as the Cruise control. This ergonomically designed joystick can detect and control the acceleration of the crawler by simply applying forward pressure on the directional joystick. The brightness of the LED lamp can be adjusted from 0 to 100%, and the camera head has the home positioning function that makes it easy to face it automatically to the front with a touch of a button. The advanced IR sensor function also allows the users to automatically measure the diameter of the pipe at the same time. The system status is always displayed on the monitor, so the users can monitor or receive notification whether the crawler can be overturned by tilting more than the specified inclination value. The real-time temperature, humidity, and pressure sensors can display on the screen whether there is a possibility of malfunction due to water intrusion into the crawler.
INSTINCTIVE AND INTELLIGIBLE FULL HD DIGITAL RECORDING DEVICE
The picture quality of this product is Full HD, which is much larger in size compared to that analog SD picture quality. The controller is equipped with a high-end PC that has an intel i5 7th generation processor, 32GB DDR memory chip, and SATA SSD-128GB storage device, which does not lose data even on impact. The Robocam S system controller has a digital recording program located right next to the sewer inspection monitor so that the users can easily understand its usage. The users can conveniently record the inspection contents and capture still images in high definition at any time during the photographing test. In addition, the recorded images can be safely moved to a USB memory stick or an external hard drive.
INSTINCTIVE AND INTELLIGIBLE FULL HD DIGITAL RECORDING DEVICE
The picture quality of this product is Full HD, which is much larger in size compared to that analog SD picture quality. The controller is equipped with a high-end PC that has an intel i5 7th generation processor, 32GB DDR memory chip, and SATA SSD-128GB storage device, which does not lose data even on impact. The Robocam S system controller has a digital recording program located right next to the sewer inspection monitor so that the users can easily understand its usage. The users can conveniently record the inspection contents and capture still images in high definition at any time during the photographing test. In addition, the recorded images can be safely moved to a USB memory stick or an external hard drive.
QUADRILINGUAL LANGUAGE CAPTION PROGRAM TO MEET GLOBAL SEWER LINE INSPECTION SUBTITLE STANDARD (TYPEWRITING SOFTWARE PROGRAM)
Every country has its own sewer line video inspection manual; there are different classifications such as subtitle location, content, and any abnormalities to be displayed on the screen. ROBOCAM S Typewriter is a program developed with constant devotion after thoroughly studying the subtitle standards of various countries based on their exporting experiences for many years. The controller has a built-in system written in English, Korean, Japanese, and Chinese; when the users select a specific language from settings, the computer reboots and displays the screen in the selected language. Even the location and content of the detailed subtitles are changed to suit the sewer inspection manual of each country. The UI is set in a way that the subtitling program, just like the digital recording program, is located right next to the pipe inspection image screen. The inspector can freely write any required subtitles during the sewer inspection services on the screen using the keyboard at any time and also display various defect descriptions saved in advance. Usually, each time a new course of investigation is carried out, the subtitles get erased, which is an inconvenience that requires rewriting the subtitles. In this sense, Robocam S is convenient to use as it has the functions to save and recall the subtitles. If the users want to use the Wincan reporting software program’s real-time reports and subtitle display function, instead of Robocam S’ subtitle program, they can do so by removing all the subtitles prior to connecting to Wincan.

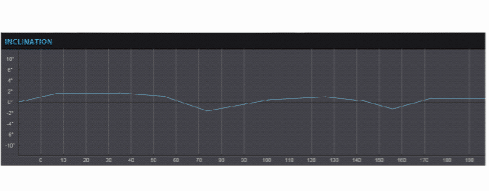

HIGH-TECHNOLOGY THAT CAN MEASURE PIPE INCLINATION AND ITS DIAMETER
When installing new sewer lines and managing existing pipelines at regular intervals, the measurement values that are universally required are measurements of the inclination and size of the pipes. The pipe inclination technology of other existing products simply develops a low data value in a graph with a gyroscope sensor, but the Robocam S controller has a special function that filters and converts the value with no errors. Generally, when a sewer inspection crawler runs through a sewer line, it overcomes a variety of obstacles. During this time, the crawler is inclined irregularly and excessively, but the program intelligently corrects the unexpectedly protruding data value and expresses the stable inclination value as a graph. In addition, with a simple one-touch operation, the diameter of the sewer line can be automatically measured and the camera head can be positioned at the center of the sewer line.
Controls

Joysticks, Push Button
Number of Pixels 1366*768
Active Area 409.8*230.4/18.5 inch
Pixel arrangement RGB Vertical stripe
Display Colors 16.7M
Display Mode Normally White
Back-light Right edge side, 1-LED Light Bar


Display (Monitor)

Video Capture MPEG-4 AVC H.264
Image Capture PNG
Internal Storage 120GB
Connectivity RTSP
Size(mm) / Weight (kg) 503(W)*390(L)*500mm(H) when opened /
503(W)*390(L)*200mm(H) when closed / 20kg
Material Iron / Aluminum / Protective from external shock
PC i5 7th intel / SATA SSD 128GB / DDR 32GB 2400MHz
Power AC110 VAC/50Hz (Option AC220 VAC/60Hz) 500W
Operating Temperature -10C ~ +50C
